Bolts, pins & shafts
Long or cylindrical parts that may cross, bridge or require a controlled axial presentation.
Parts and production applications
Feeding decisions based on component behaviour.
Step feeders are evaluated where controlled lifting, low-level loading and a robust linear presentation path suit the product and production environment.
Component families
Common starting points for a step-feeder review.
Suitability always depends on the whole part set, required orientation and accepted production rate.
Nuts, rings & fixings
Robust metal components requiring single-layer elevation, track orientation and accurate escapement.

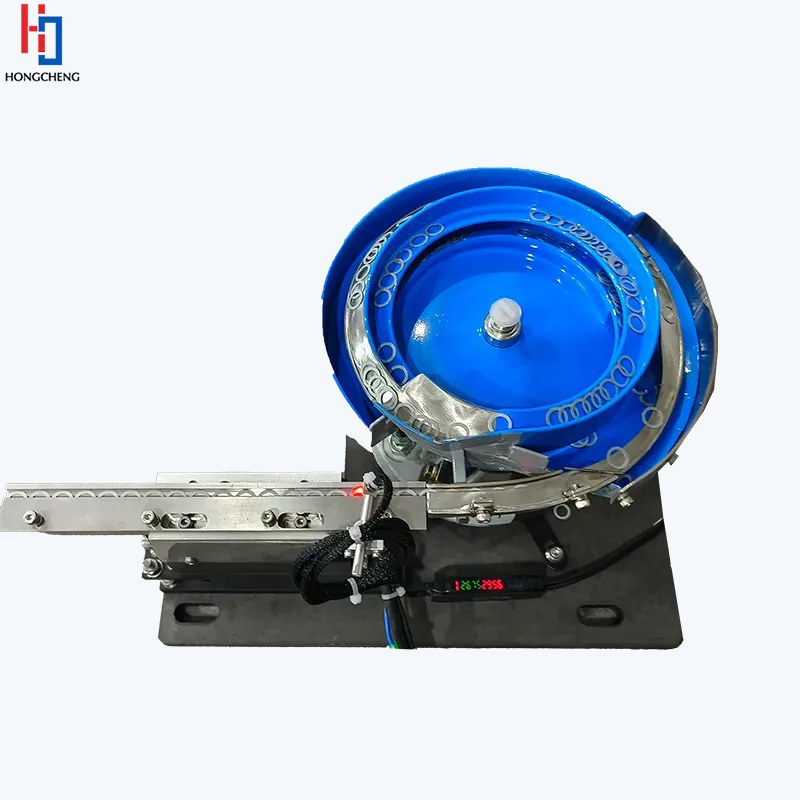

Automotive mouldings
Clips, housings, connectors, plugs and formed parts with defined datums or inspection features.
Closures & fittings
Caps, plugs, collars and dispensing components requiring top/bottom or axial orientation.
Pressings & cast parts
Heavier components that benefit from a rigid path and carefully engineered transfer points.
Rubber & technical parts
Friction-sensitive components that require real-sample assessment for sticking, nesting and release.
Orientation tooling is designed around the component datum and downstream operation.
Industrial markets
From automated assembly to packaging-line component supply.
A step-feeder system can be integrated wherever a repeatable part presentation is needed before assembly, insertion, inspection, packing or robotic handling.
- Automotive and tier-supplier assembly
- General industrial manufacturing
- Fastener and fixing production
- Plastics and injection-moulded components
- Electrical and connector assembly
- Packaging components and closures
- Medical-device components, subject to cleanability review
- Consumer product and appliance assembly
Selection criteria
When another feeder may be the better answer.
Technology-neutral selection protects the production result. Step feeding is one option within a wider component-handling toolbox.
Vibratory bowl
Often effective for compact parts needing dedicated mechanical orientation around a circular track.
Centrifugal feeder
Considered where robust components demand very high presentation rates and rotary handling suits the geometry.
Flexible or robotic feed
Useful for frequent format change, delicate parts or applications where vision-guided picking adds value.
Straight answers
Application assessment questions
Yes, representative production samples are normally required before the feeding principle, tooling and acceptance criteria can be finalised. Drawings alone do not reveal friction, bounce, nesting or normal manufacturing variation.
Potentially. Contact surfaces, batch depth, impact points, return paths and acceptable marking must be assessed. A flexible or robotic feeder may be more appropriate where part-on-part contact is unacceptable.
Only when all materials and finishes have been tested. A geometry that feeds well in metal may behave differently in moulded plastic or rubber because friction, static and rebound change.
A camera can verify orientation, presence or selected features after step elevation. Vision is not a cure for unstable presentation, so the mechanical feed path still needs to create a controlled viewing and handling condition.
Application review
The most difficult component usually defines the project.
Send a drawing or photograph, the component range, required orientation, sustained output and receiving-machine details. We will identify the most suitable next step.
Step feeder knowledge centre
Engineering guides for a better feeding decision.
Compare principles, define the application and arrive at a quotation or trial with the evidence needed for a useful answer.
Step feeder vs bowl feeder
Compare feeding principles by component, noise, rate and hand-off.
Read the guide →Fastener feeding systems
Engineering guidance for bolts, screws, pins, nuts, bushes and shafts.
Read the guide →Non-vibratory feeding
Understand lower-vibration bulk feeding and realistic noise objectives.
Read the guide →Selection guide
Build a complete brief from components, rate, layout and acceptance evidence.
Read the guide →Cost and specification
See which tooling, controls, guarding and integration choices determine scope.
Read the guide →Orientation and escapements
Define the verified datum, buffer and one-part machine release.
Read the guide →Maintenance guide
Protect feed-path geometry, sensing, alignment and fault recovery.
Read the guide →Step feeder FAQ
Get direct answers to common engineering and purchasing questions.
Read the guide →What should a step-feeder trial check for delicate components?
Provide representative components and identify surfaces or features that must remain undamaged. Define the required orientation and delivery rate at the receiving process. Assess the parts after the full feeding and transfer sequence, including replenishment and pauses, so handling quality is reviewed alongside consistent presentation.
- Protected surfaces and features
- Orientation and delivery demand
- Condition after the full transfer
