Step width & pitch
The useful surface must carry the intended part without enabling crosswise bridging or excessive double stacking.

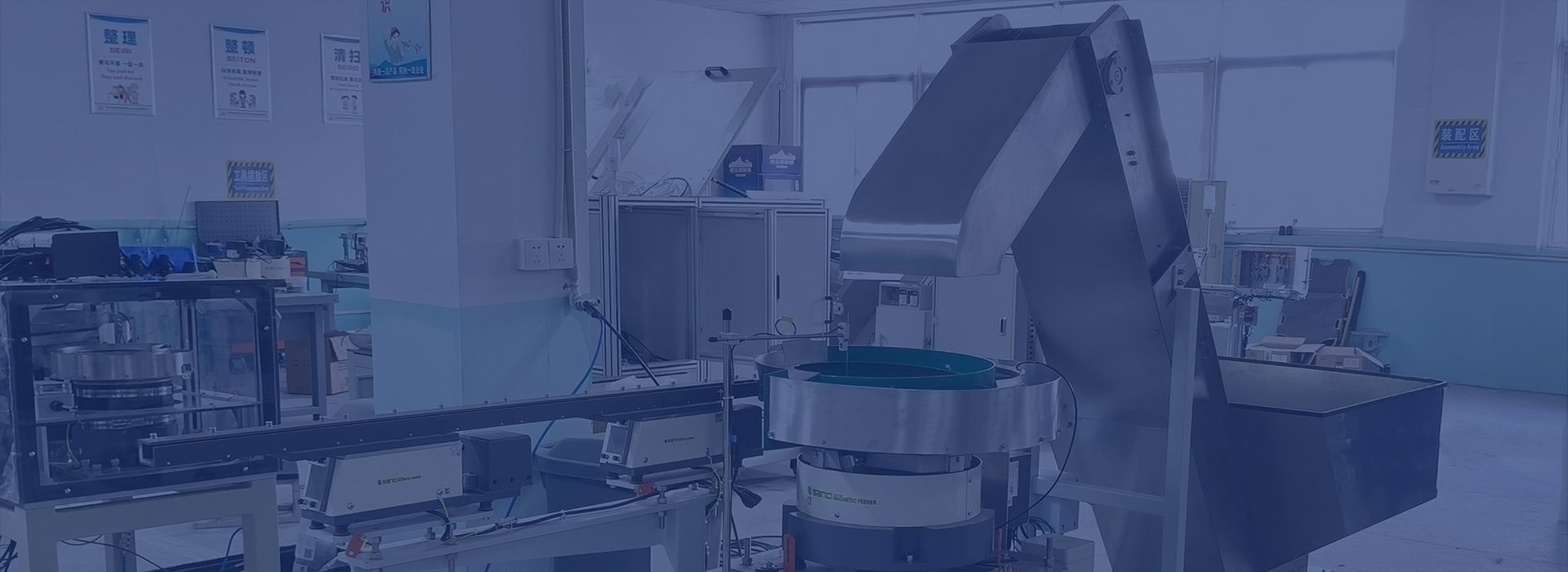

Larger-component feeding
Controlled elevation for longer, larger and heavier parts.
Step feeders provide a deliberate route from a low bulk hopper to a linear orientation track—well suited to components that bridge, tangle or demand a robust feed path.
Bulk storage, elevation and output tooling are developed around part length, weight and settling behaviour.
Component behaviour
Overall size is only the starting point.
A long component may roll freely, hook onto another part, bridge across the hopper or settle unpredictably. The feeder design has to manage those behaviours—not only fit the nominal drawing.
- Maximum and minimum component envelope
- Weight and centre of gravity
- Features that nest, hook or interlock
- Surface finish and acceptable contact
- Rolling, bouncing and sliding behaviour
- Normal variation, flash, oil or contamination
Engineering decisions
Built around controlled movement at every transition.
Large-part reliability depends on a clear route for accepted parts and an equally clear return path for everything else.
Product bed depth
Hopper geometry and fill level manage load on the lifting plates and reduce deep interlocking.
Track entry
The upper transition separates, settles and guides parts into a stable linear presentation.
Return route
Mispresented parts recirculate without damaging the component or obstructing accepted output.
Drive & structure
The frame, drive and supports are sized for component mass, dynamic load and the required duty cycle.
Final release
The escapement isolates one part without marking, jamming or transferring upstream pressure to the machine.
Typical assessment cases
Parts that benefit from deliberate elevation.
These examples indicate where step feeding is often considered; they are not a substitute for component trials.
Bolts & fixingsLong bolts, coach bolts, threaded studs, pins, rivets and substantial fasteners.
Shafts & turned partsCylindrical components requiring axial orientation, end recognition or controlled pitch.
Automotive mouldingsClips, housings, brackets, plugs and robust moulded components.
Closures & fittingsLarge caps, plugs, connectors and components with distinct axial orientation.
Pressings & castingsParts requiring a substantial track, controlled return and reliable separation.
Multi-format familiesRelated parts that may be managed through adjustable guides or defined change tooling.
Straight answers
Large-component feeding questions
There is no useful catalogue answer because geometry, weight, centre of gravity and the tendency to bridge or interlock matter as much as overall length. The mechanism and track are sized around the physical sample set.
Long bolts, pins and shafts are common assessment cases. The step width, return path and track entry must prevent crossing, double stacking and entanglement.
Part-on-part contact, drop height and return geometry must be reviewed. Liners, smaller batch depth, slower motion or alternative handling may be needed where surface damage is unacceptable.
Potentially, but the full range must pass the same lifting, orientation and escapement criteria. A format split or change parts may be more reliable where the size range is wide.
Application review
Send the largest, smallest and most difficult part variants.
Send a drawing or photograph, the component range, required orientation, sustained output and receiving-machine details. We will identify the most suitable next step.
Step feeder knowledge centre
Engineering guides for a better feeding decision.
Compare principles, define the application and arrive at a quotation or trial with the evidence needed for a useful answer.
Step feeder vs bowl feeder
Compare feeding principles by component, noise, rate and hand-off.
Read the guide →Fastener feeding systems
Engineering guidance for bolts, screws, pins, nuts, bushes and shafts.
Read the guide →Non-vibratory feeding
Understand lower-vibration bulk feeding and realistic noise objectives.
Read the guide →Selection guide
Build a complete brief from components, rate, layout and acceptance evidence.
Read the guide →Cost and specification
See which tooling, controls, guarding and integration choices determine scope.
Read the guide →Orientation and escapements
Define the verified datum, buffer and one-part machine release.
Read the guide →Maintenance guide
Protect feed-path geometry, sensing, alignment and fault recovery.
Read the guide →Step feeder FAQ
Get direct answers to common engineering and purchasing questions.
Read the guide →Show both ends of long components in the feeder brief
Long bolts, shafts and turned parts may look nearly identical end-for-end while the next operation requires one specific end to lead. A step feeder can elevate the component without establishing that final distinction. Show the functional end features in the application brief so elevation, orientation and release are assessed as separate tasks.
Provide close photographs of both ends alongside the full drawing and representative samples. Identify chamfers, bores, threads, shoulders or other features that distinguish an acceptable pose. State whether those features vary across the product family and whether their position remains visible on the proposed orientation track. This helps establish which mechanical selection or sensor checks merit a trial.
Include deliberately reversed components in the acceptance review and define what must happen before release to the receiving machine. If the distinguishing feature cannot be observed reliably, another presentation route may be needed. The useful output is a component ready for the next task, not merely a shaft moving in single file. Send the required leading-end view and the receiving-machine interface when asking about a large-component step feeder.
Does single-file shaft feeding prove the correct end leads?
No. End orientation needs a suitable selection or confirmation method when the next operation depends on it.
What samples help specify long-part orientation?
Include both accepted and reversed poses, plus all variants whose end features differ or are difficult to distinguish.
